Application:
Embedded IA, VOD, Video server, Security,
Home MIDI, ATM, Panel PC and POS, Kiosk application
Features:
Intel Atom , Touch Screen , LVDS , PCI , TV-OUT ,
IEEE 1394 , WDT / DIO , PCIe Mini Card , 6 COM
Specifications:
. CPU type:
Intel Atom N270 1.6GHz processor
. Front Side Bus:
533 MHz
. MB Chipset:
Intel 945GSE + ICH7M (82801 GBM)
. Graphics:
Integrated with Intel 945GSE
Dynamic Video Memory Technology(DVMT 3.0)
. LVDS:
Data format of 18 bits
. Memory:
1 x DDRII SODIMM (max. 2 GB)
. NAND flash memory:
CF Card Type II for ATA interface
On board SSD 1 / 2 / 4 / 8 GBytes (option)
. Audio:
Intel HD Audio. Supports Line-out / Mic-in / Lline-in
. LAN:
1~2 x Intel 82574L or Realtek RLT8111C 10 / 100 / 1000 Mbps.

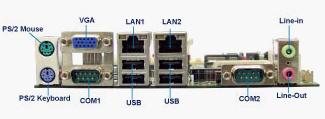

. IO function:
(FI270P)
5 x RS232 or RS485(option) + 1 x RS422/485 or RS232(option)
(FI270S/M)
2 x RS232
. USB:
8 x USB 2.0 (4 external + 4 internal)
. Audio Amplifier(option):
6-W / CH into an 8-Ω Load from a 12-V Supply
Up to 92% Efficient, Class-D operation
Differential Input minimizes Common-Mode noise
. TV-out(option):
Supports all NTSC & PAL formats,
S-Video & RCA Jack for CVBS TV-out connectors.
HDTV supports 480p / 720p / 1080i / 1080p
. Touch Screen(option):
USB interface Touch screen controller
Supports 4-, 5-, 8- wire Analog Restive Touch screen
USB 1.1 full speed sample rate maximum of 300 point / sec
. IEEE1394A(option):
2 ports of PCIe interface
Supports 400 / 200 / 100 Mbps data transfer rate
. DIO & WDT(option):
Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
. Expand interface:
1 x Mini PCI socket, 1 x PCI slot
1 x PCIe mini card for PCIe & USB interface
. Power:
ATX standard power
. Dimension:
170 x 170 mm (Mini ITX)
. Operation Temp.:
0 ~ 60°C
. Operation Humidity:
5~95% @ 60 °C, non-condensing
. Audio Amp(option)
Ordering Information
. FI270S-1G00 : 1 LAN, 2 COM
. FI270P-2G00 : 2 LAN, 6 COM, DIO&WDT
. FI270M-2G00 : 2 LAN, 2 COM, IEEE 1394, TV-out
Testing environment
Model name :
FI270S-1G00
CPU :
Intel Atom N270 1.6 GHz
Chipset :
Intel 945 GSE & ICH7M
OS :
WIN XP
Testing Program :
3D
Please upgrade the hard drive to industrial grade for better temperature performance. |
